BOXER E1 PLUS

BOXER E1 PLUS

Ref. no. 39.00.126

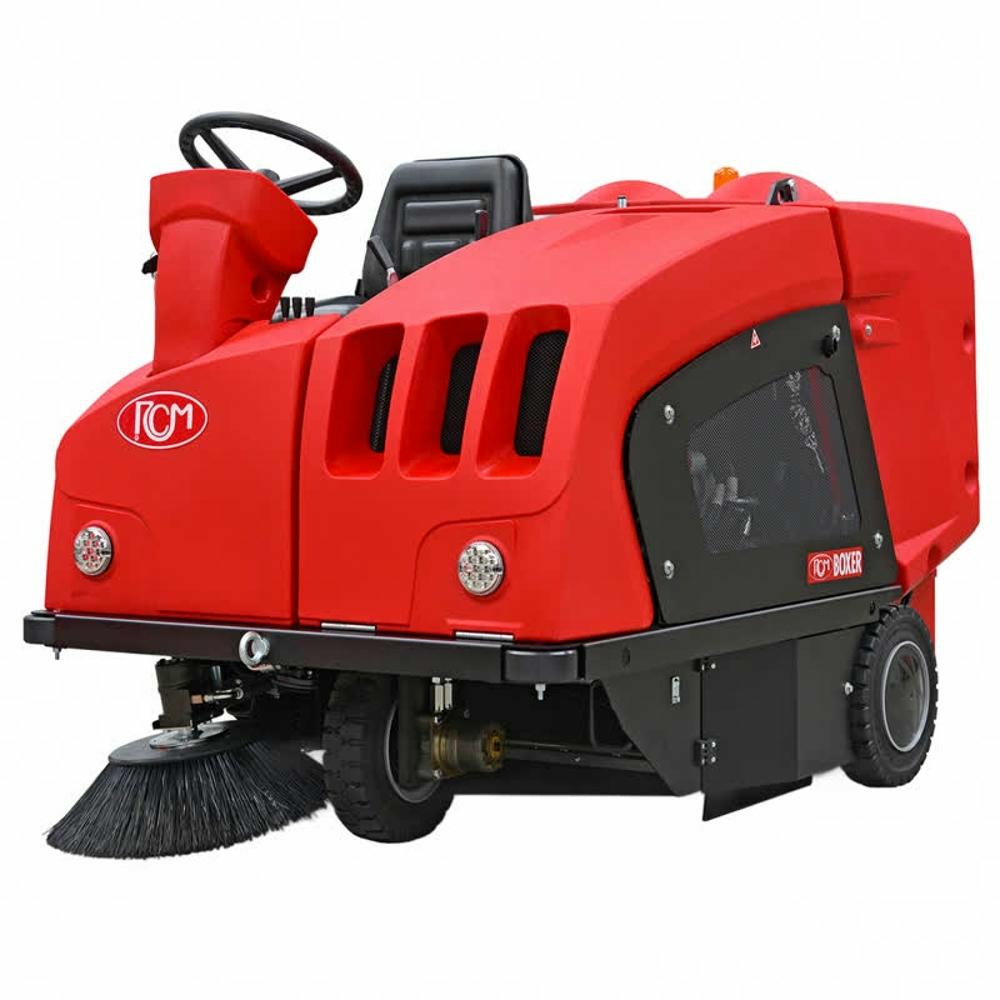

The RCM BOXER E/1 PLUS ride-on sweeper is a fully hydraulic machine, which makes it highly reliable and therefore low maintenance. With its large 315-litre collection bin, you can work long hours without interruption. The Boxer Plus's side brush allows dust to be vacuumed up immediately, making work more efficient and the air cleaner. Thanks to the machine's large filter surface, even the dustiest areas are thoroughly cleaned. In short, if you are looking for a powerful ride-on sweeper for heavy industrial applications, the RCM Boxer E Plus with standard steering is the ideal choice for you.

Details BOXER E1 PLUS

Technical data

Collection container capacity	315 L
Dimensions L x W x H	200 x 126 x 140 cm
Emptying collection container	Hydraulic
Filter material	Polyester
Filter shaker	Electric
Filter type	Filter bag
Model	mount
Power (kW)	5,10 KW
Power source	Battery
Surface area efficiency	13.000 m²/h
Type of brushes	PPL
Working width with 1 side brush	1.300 mm

Accessories

All accessories

Optional

Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

Ref. no. 1.5.03640
Included

Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

Ref. no. 1.5.03640
Optional

Side brush mixed steel t1600/1700/2000/boxer (plus)/mille (plus)/duemila

Ref. no. 1.5.03641
Optional

Central brush (double) boxer plus

Ref. no. 1.5.13656
Optional

Central brush renforce boxer plus

Ref. no. 1.5.13729
Optional

Central brush ppl boxer plus

Ref. no. 1.5.13727
Included

Central brush ppl boxer plus

Ref. no. 1.5.13727
Optional

Reverse warning signal boxer (plus) sk/d /mille (plus) sk/d /duemila s/d

Ref. no. 2.7.09649
Included

KIT : NO. 2 x 4 SGH 320 (12 ELEMENTS) - BATTERY TUB. 24V - 320Ah/5 WITH COFFER (810 x 270 x 446H mm)

Ref. no. 4PZS320B12S
Included

Automatic filling system 48v

Ref. no. AFS-48
Included

Cbhf4 48-40 battery charger green 2 48v 40

Ref. no. BL48-40-EX
Optional

Front dust conveyor boxer plus

Ref. no. V27.15557
Optional

Overhead guard boxer plus/mille plus

Ref. no. V27.15558

Common replacement parts

Optional

Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

Ref. no. 1.5.03640
Optional

Side brush mixed steel t1600/1700/2000/boxer (plus)/mille (plus)/duemila

Ref. no. 1.5.03641
Optional

Central brush (double) boxer plus

Ref. no. 1.5.13656
Optional

Central brush renforce boxer plus

Ref. no. 1.5.13729
Optional

Central brush ppl boxer plus

Ref. no. 1.5.13727

Standard equipment

Included

Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

Ref. no. 1.5.03640
Included

Central brush ppl boxer plus

Ref. no. 1.5.13727

Purchase options

Optional

Reverse warning signal boxer (plus) sk/d /mille (plus) sk/d /duemila s/d

Ref. no. 2.7.09649
Optional

Front dust conveyor boxer plus

Ref. no. V27.15557
Optional

Overhead guard boxer plus/mille plus

Ref. no. V27.15558

Batteries and chargers

Included

KIT : NO. 2 x 4 SGH 320 (12 ELEMENTS) - BATTERY TUB. 24V - 320Ah/5 WITH COFFER (810 x 270 x 446H mm)

Ref. no. 4PZS320B12S
Included

Automatic filling system 48v

Ref. no. AFS-48
Included

Cbhf4 48-40 battery charger green 2 48v 40

Ref. no. BL48-40-EX
