BOXER SK1 PLUS DUAL FUEL

Ref. no. 39.00.134

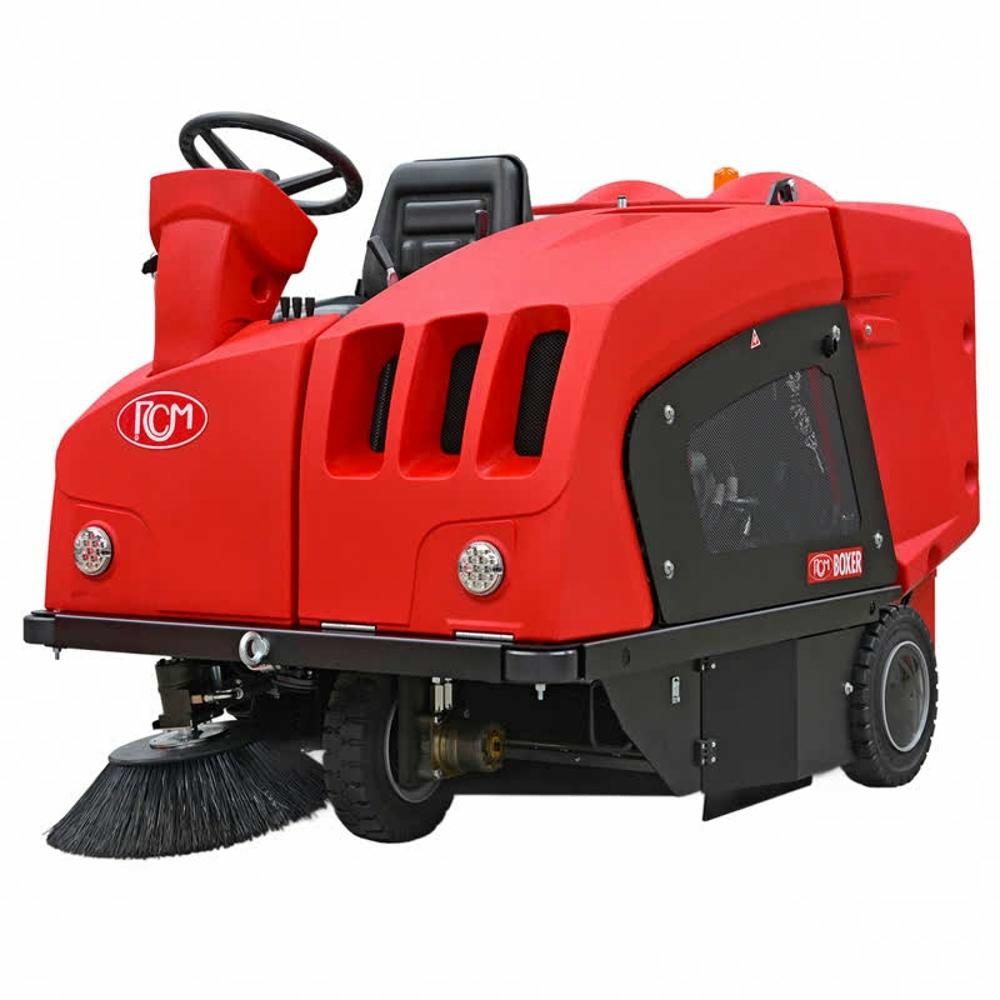

The RCM BOXER SK PLUS ride-on sweeper is particularly suitable for heavy industrial applications thanks to its ease of maintenance and use, reliability, and low operating costs. With its 315-liter collection container, this sweeper has a very large autonomy. The tipping system is fully hydraulic and reaches a height of 155 cm. Thanks to the patented “Dust Buster” system, all dust is immediately sucked up by the side brushes, which makes the work much more efficient and keeps the air clean. The Boxer Plus has an exceptionally large filter surface, allowing even the dustiest areas to be swept perfectly clean. The filter can be cleaned without having to be dismantled! The central brush can be raised and lowered hydraulically, and the machine is equipped with LED lighting, an adjustable seat, and adjustable steering wheel. The battery-powered model also has power steering as standard.

Details BOXER SK1 PLUS DUAL FUEL

Technical data

Collection container capacity 315 L
Dimensions L x W x H 200 x 126 x 140 cm
Emptying collection container Hydraulic
Filter material Polyester
Filter shaker Electric
Filter type Filterbag
Model mount
Power (hp) 25,20 PK
Surface area efficiency 13.000 m²/h
Type of brushes PPL
Working width with 1 side brush 1.300 mm

Accessories

All accessories

  • Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Optional

    Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Ref. no. 1.5.03640

  • Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Included

    Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Ref. no. 1.5.03640

  • Side brush mixed steel t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Optional

    Side brush mixed steel t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Ref. no. 1.5.03641

  • Central brush (double) boxer plus

    Optional

    Central brush (double) boxer plus

    Ref. no. 1.5.13656

  • Central brush renforce boxer plus

    Optional

    Central brush renforce boxer plus

    Ref. no. 1.5.13729

  • Central brush ppl boxer plus

    Optional

    Central brush ppl boxer plus

    Ref. no. 1.5.13727

  • Central brush ppl boxer plus

    Included

    Central brush ppl boxer plus

    Ref. no. 1.5.13727

  • Reverse warning signal boxer (plus) sk/d /mille (plus) sk/d /duemila s/d

    Optional

    Reverse warning signal boxer (plus) sk/d /mille (plus) sk/d /duemila s/d

    Ref. no. 2.7.09649

  • Front dust conveyor boxer plus

    Optional

    Front dust conveyor boxer plus

    Ref. no. V27.15557

  • Overhead guard boxer plus/mille plus

    Optional

    Overhead guard boxer plus/mille plus

    Ref. no. V27.15558

Common replacement parts

  • Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Optional

    Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Ref. no. 1.5.03640

  • Side brush mixed steel t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Optional

    Side brush mixed steel t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Ref. no. 1.5.03641

  • Central brush (double) boxer plus

    Optional

    Central brush (double) boxer plus

    Ref. no. 1.5.13656

  • Central brush renforce boxer plus

    Optional

    Central brush renforce boxer plus

    Ref. no. 1.5.13729

  • Central brush ppl boxer plus

    Optional

    Central brush ppl boxer plus

    Ref. no. 1.5.13727

Standard equipment

  • Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Included

    Side brush ppl t1600/1700/2000/boxer (plus)/mille (plus)/duemila

    Ref. no. 1.5.03640

  • Central brush ppl boxer plus

    Included

    Central brush ppl boxer plus

    Ref. no. 1.5.13727

Purchase options

  • Reverse warning signal boxer (plus) sk/d /mille (plus) sk/d /duemila s/d

    Optional

    Reverse warning signal boxer (plus) sk/d /mille (plus) sk/d /duemila s/d

    Ref. no. 2.7.09649

  • Front dust conveyor boxer plus

    Optional

    Front dust conveyor boxer plus

    Ref. no. V27.15557

  • Overhead guard boxer plus/mille plus

    Optional

    Overhead guard boxer plus/mille plus

    Ref. no. V27.15558
