Tecnoil 220 MPI

Ref. no. TC220MP-001

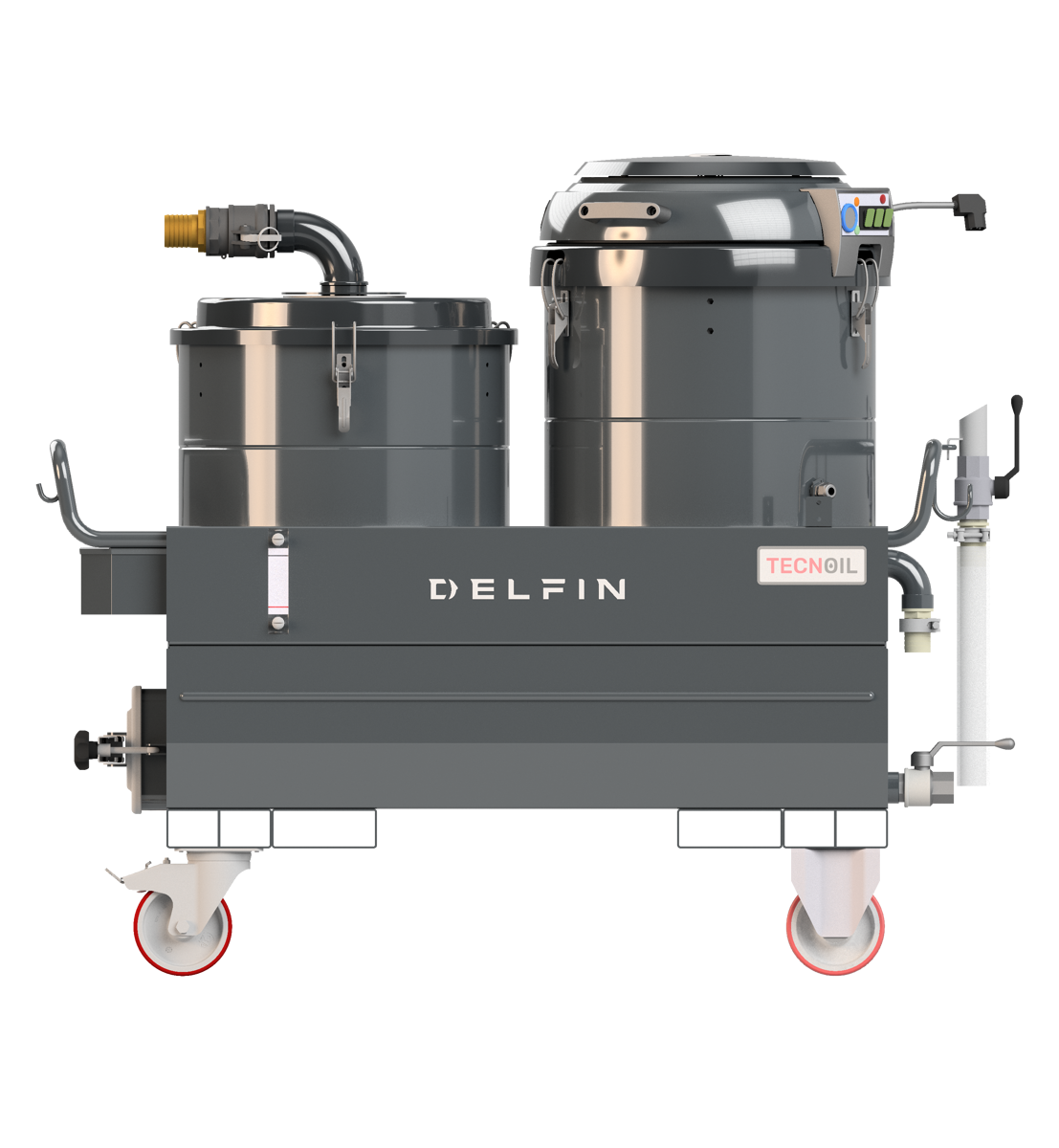

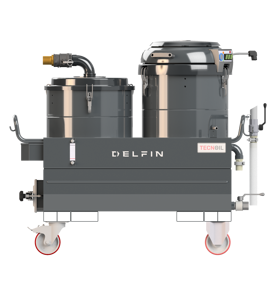

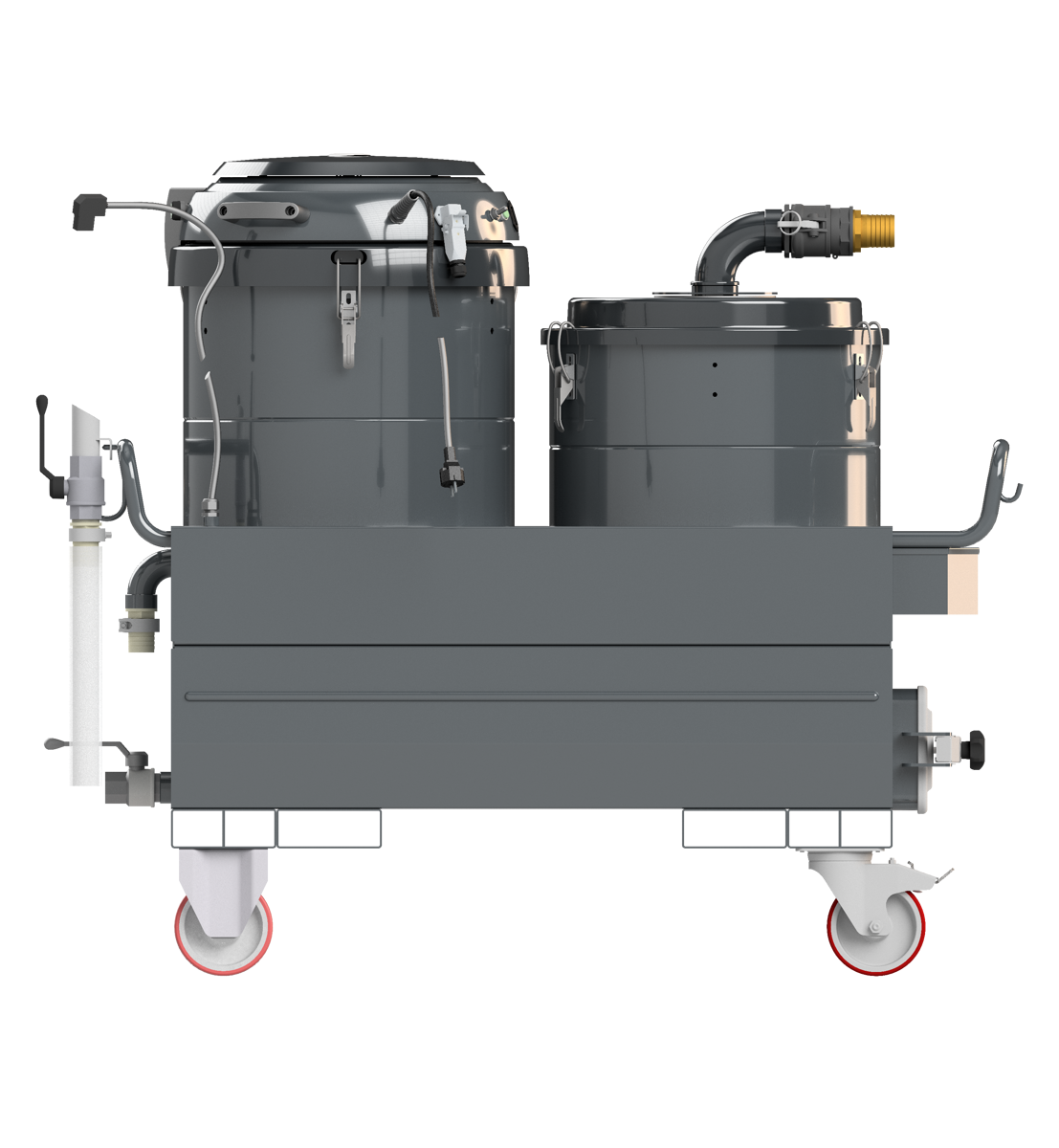

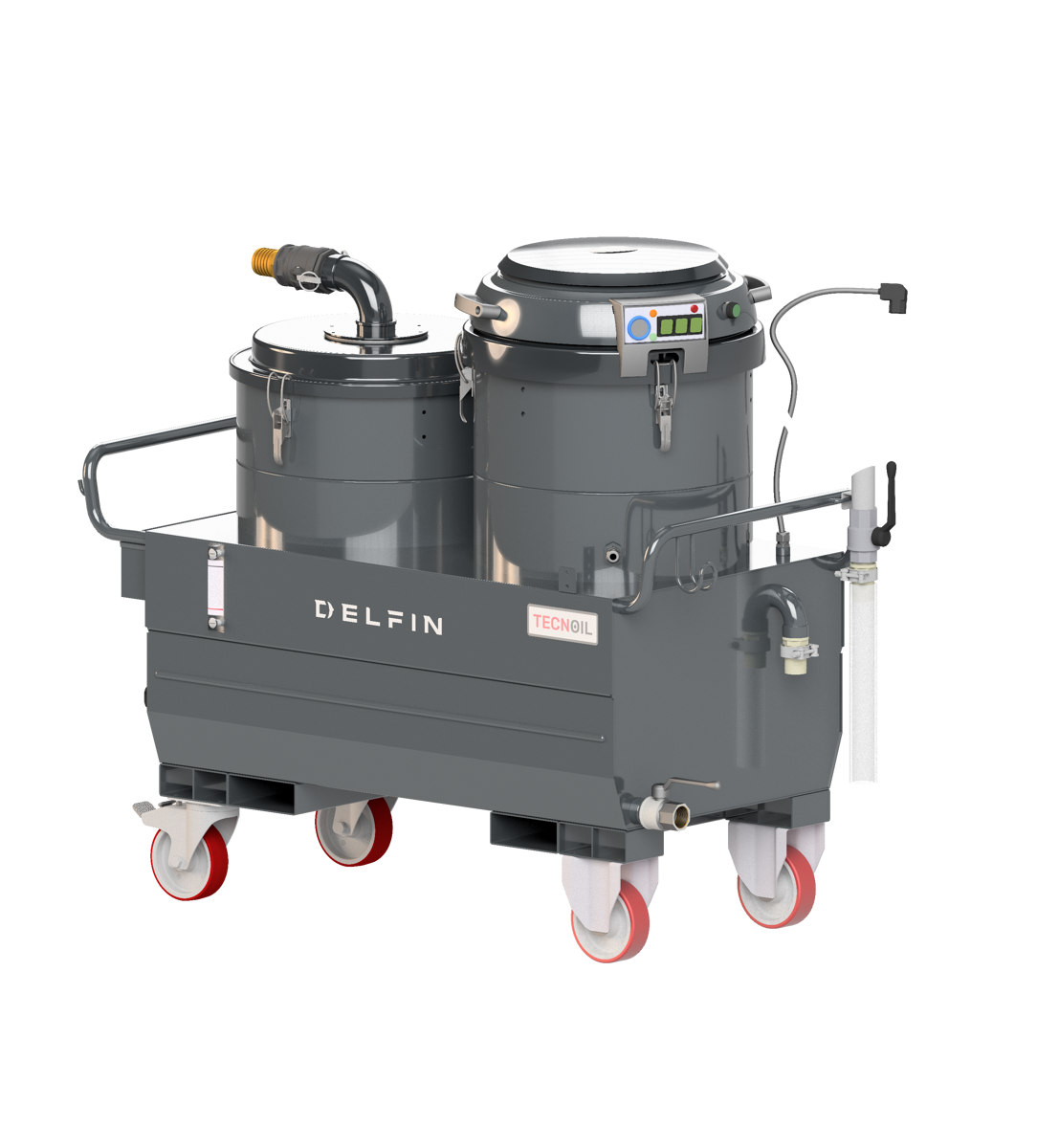

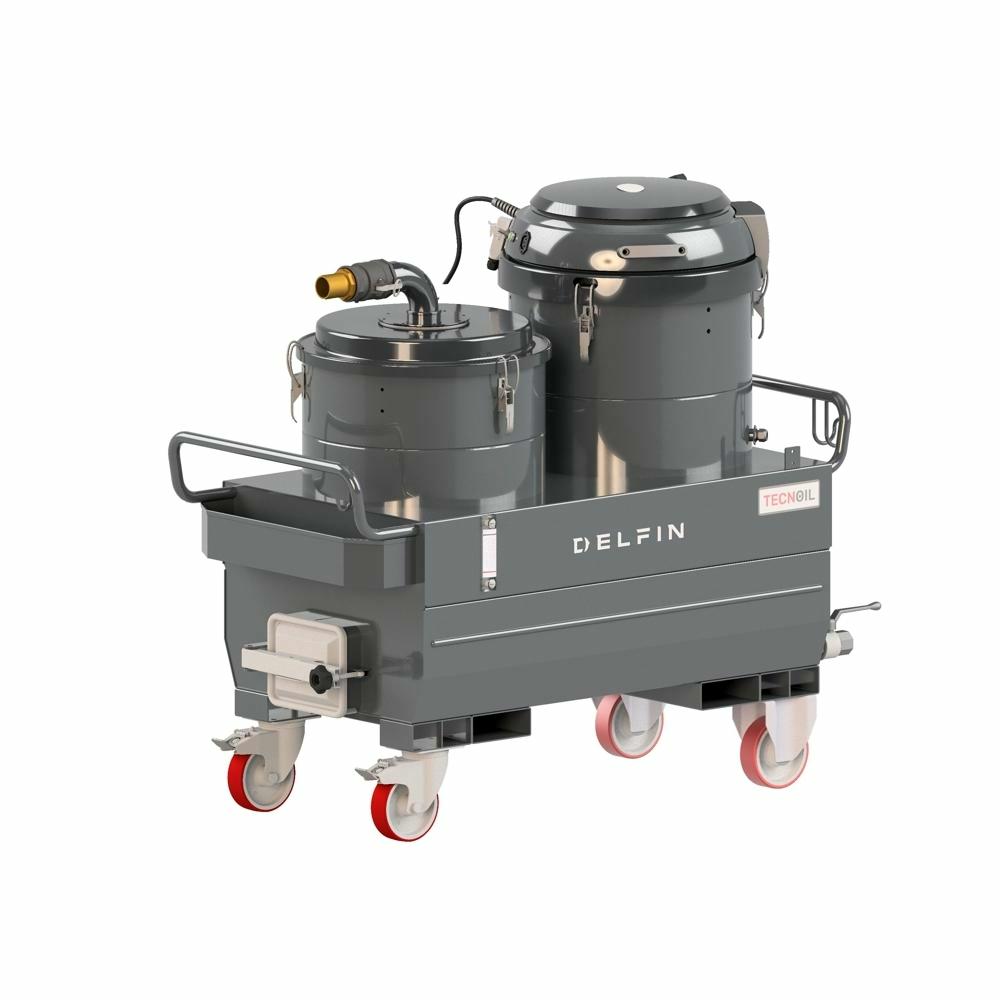

The Delfin Tecnoil 220 MPI vacuum cleaner is a powerful floating oil vacuum cleaner designed for companies that need to efficiently vacuum and process oil and metal chips. The unit is equipped with three motors. You can activate these motors individually using independent switches. Thanks to additional insulation, this suction unit has a very low noise level. The unit is equipped with an integrated float system and a 3D superweb filter in PPL (20 µm) filter that protects the motors from oil mist. The collection tank is easy to empty and consists of a sieve grid that separates metal burrs and oils from other substances. The integrated electric pump allows the vacuumed liquid to be quickly removed or introduced. The can also be easily mounted on a forklift for quick and efficient movement.

Details Tecnoil 220 MPI

Technical data

ACD	No
ATEX	No
ATEX certificate	N/A
ATEX zone	N/A
Air flow	540 m³/h
Application	Oil with metal shavings

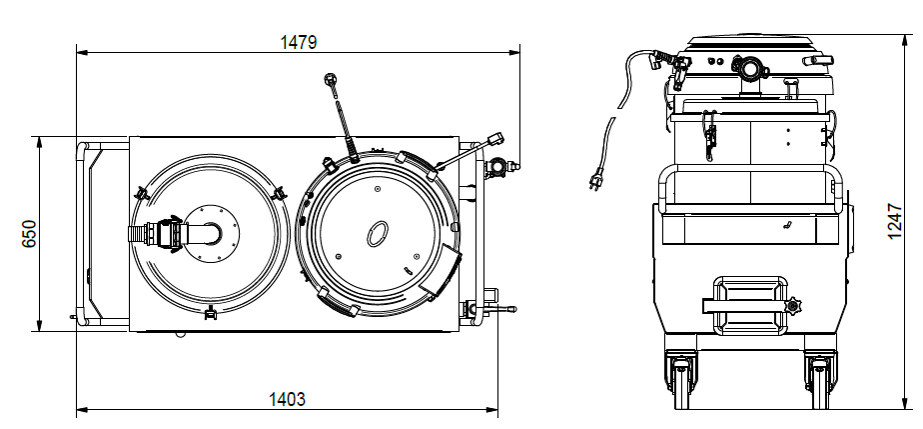

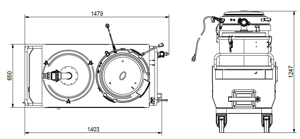

Dimensions L x W x H	145 x 72 x 147 cm
Discharge capacity	160 L/MIN
Drainage system	Pumping back via built-in pump
Filter cleaning	Manual
Filter density	20 microns
Filter material	PPL
Filter surface area (cm²)	CM²
Filter type	3D super web filter
Float system	Yes
Liquid tank capacity	220 L
Motor type	Bypass
Negative pressure	2.500 mm H²O
Noise level	76 DB
Number of motors	3 PCS
Power source	Electric
Solid tank capacity	40 L
Type	Mobile
Vacuum cleaner inlet	50 MM
Weight (kg)	165 KG
