- Pull-out collection container, suitable for disposable bags
- High airflow capacity
- Fully adaptable for your production process

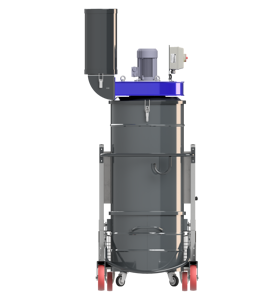

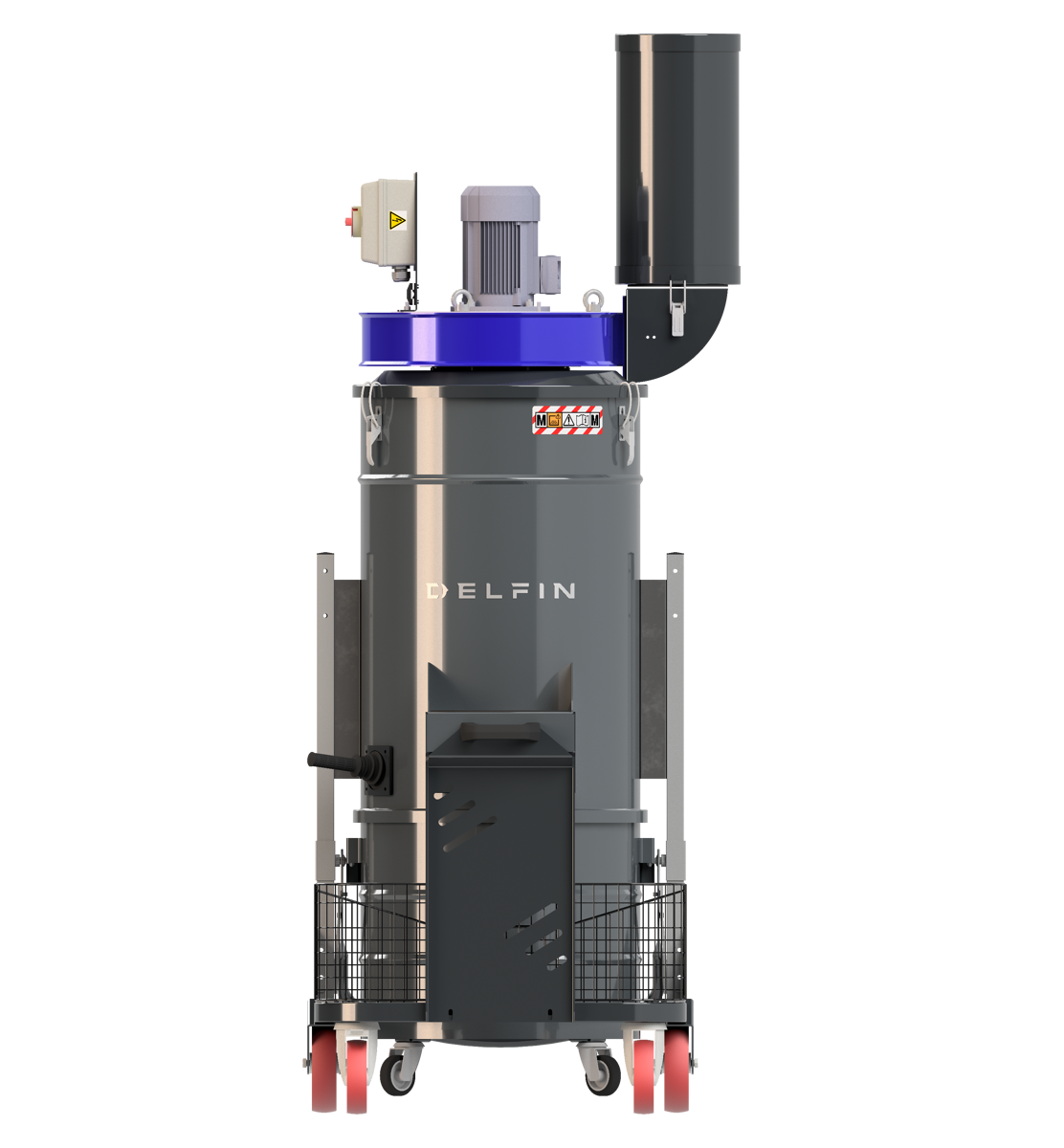

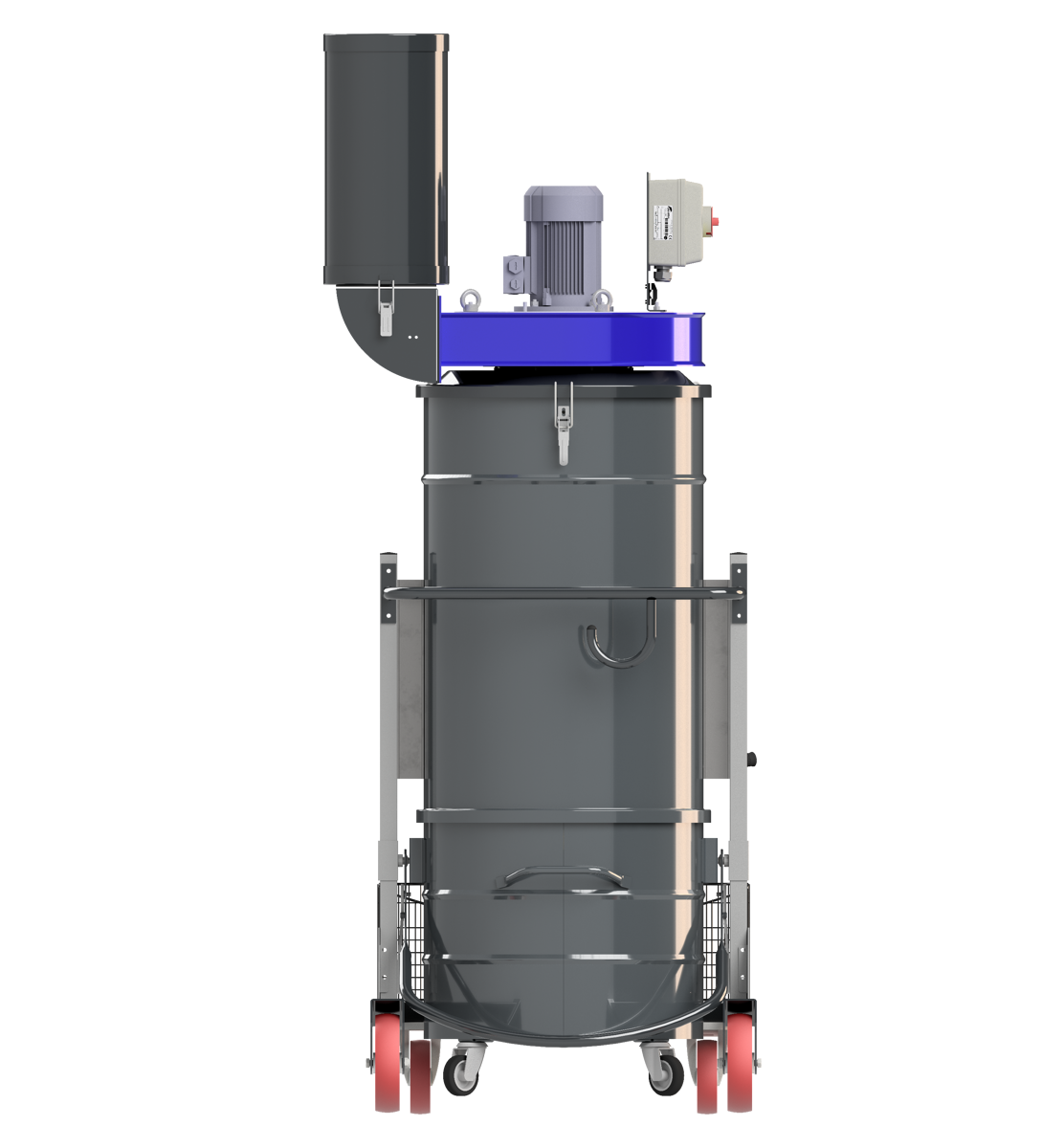

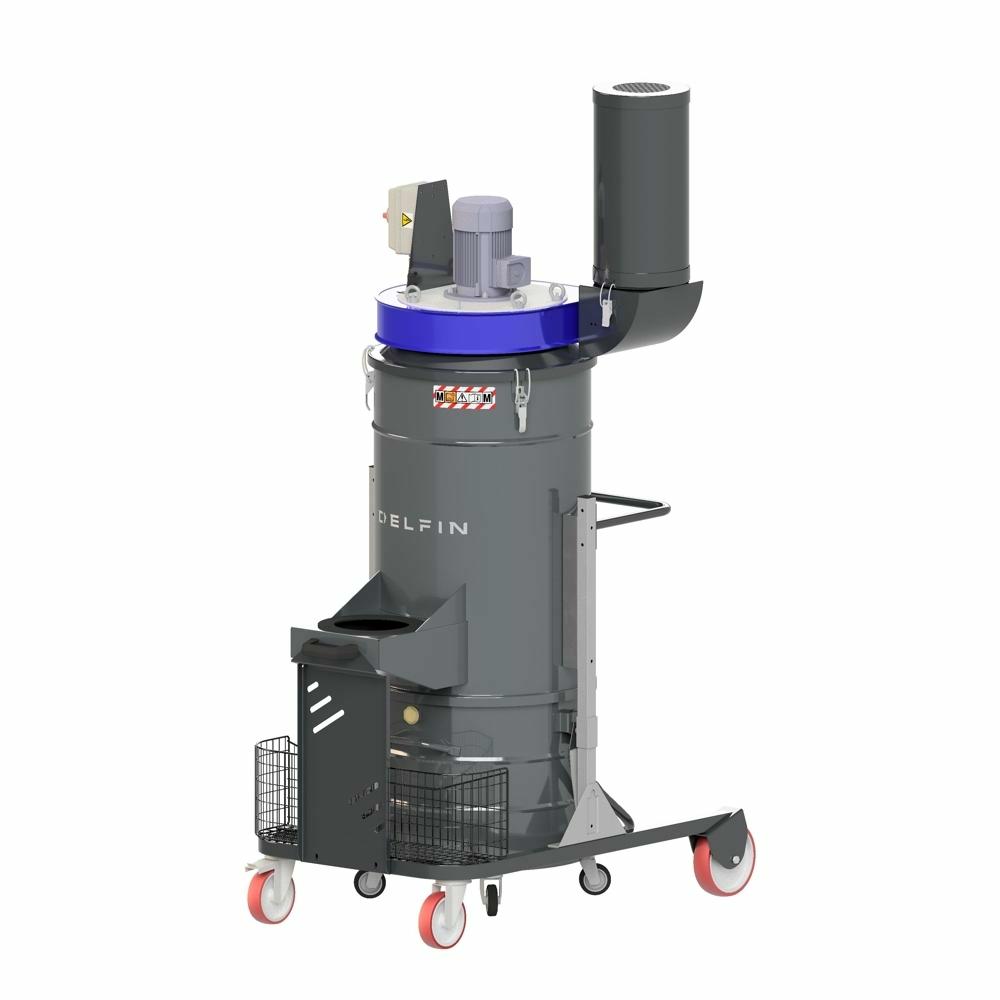

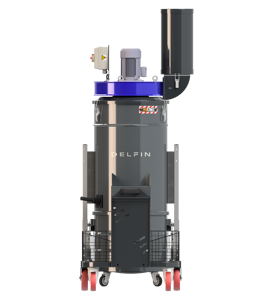

The Zefiro EV AP 560 is the solution for the efficient extraction of fine dust particles and light chips directly at the source. Specially designed for integration into production lines – from aluminum and PVC processing to the pharmaceutical and ceramic sectors.
Details Zefiro EV AP 560 K5 (inlet 200 MM)
Video
Product video
Technical data
| ATEX | No |
|---|---|
| ATEX certificate | N/A |
| ATEX zone | N/A |
| Air flow | 3.000 M³/h |
| Dimensions L x W x H | 78 x 118 x 214 cm |
| Drainage system | Roll-out collection container |
| Dry dirt | Yes |
| Filter cleaning | Manual |
| Filter density | 1 micron (class M) |
| Filter material | Polyester antistatic |
| Filter surface area (cm²) | 50.000 cm² |
| Filter type | Star filter |
| Float system | No |
| Liquids | No |
| Motor type | Turbine |
| Negative pressure | 470 mm H²O |
| Noise level | 74 DB |
| Number of motors | 1 PC |
| Power (kW) | 5,5 KW |
| Power source | Electric |
| Tank capacity | 100 L |
| Type | Mobile |
| Vacuum cleaner inlet | 200 MM |
| Weight (kg) | 130 KG |
